Coreless Armature DC Magnetic Coreless Drone Motor 9000rpm Brushless

Product Categories
Shenzhen Secore Technology Co.,Ltd
Contact Now

Coreless Armature DC Magnetic Coreless Drone Motor 9000rpm Brushless

  • 1
  • 2

Brand Name : SECORE

Model Number : SC-CL2431

Certification : CE ROHS

Place of Origin : Shenzhen

MOQ : 500

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 7-10 working days

Packaging Details : 50pcs per carton or as request

Rated Voltage : 24 Volt

Rated Power : 8.0W

Rated torque : 2.86mN.m

Rated Speed : 9000rpm

Rated current : 0.16A

Diameter * Length : 24mm * 31mm

product name : PMDC coreless motor, hollow cup dc motor, drone motor

Usage : Electric window, tattoo pen, RC toy, drone

Contact Now

Light Weight High Quality 9000rpm Coreless Armature DC Megnetic Motor For Rc Drone

Key Specifications :


Product type: Precious Metal Brush Coreless magnetic Motor

Item name: DC Brush coreless motor, DC brushless motor,
Diameter size: 10mm -60mm as request
work voltage: 3V-48V as request
Free load speed: 2000-1000000rpm as request
power: 2w-800w customizable
Motor model no. CL2431-1 CL2431-2 CL2431-3 CL2431-4
At Nomimal
Nominal voltage V/DC 6 9 12 24
Nominal speed RPM 7300 9080 8910 8820
Nominal current A 0.52 0.23 0.46 0.17
Nominal Torque mNm 3.13 1.84 4.84 3.41
Free Load
No load speed RPM 8300 10300 10300 10000
No load current A 0.06 0.028 0.03 0.014
At Max Efficiency
Max efficiency % 78.7 79.6 80.5 80.2
Speed RPM 7390 9190 9120 9010
Current A 0.44 0.024 0.36 0.16
Torque mNm 2.86 1.3 3.87 2.86
At Max output power
Max output power W 6.2 4.8 11.8 8.1
Speed RPM 4130 5142 5000 4960
Current A 2.3 1.2 2.4 0.75
Torque mNm 14.6 8.7 21.86 15.5
At stall
current A 4.14 2.4 3.89 0.35
torque mNm 28.5 16.5 43.7 30.7

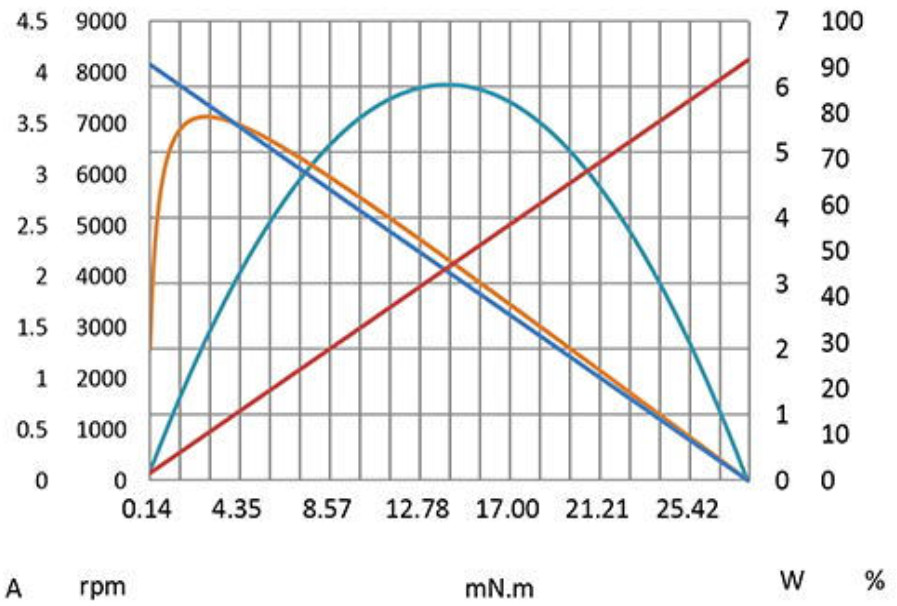

Performance curving

Coreless Armature DC Magnetic Coreless Drone Motor 9000rpm Brushless

Coreless Motor Features:

  • outstanding energy-saving: highly energy conversion efficiency
  • sensitive and convenient control: quick start, fast braking, fast response; sensitive speed adjustment
  • stable operating: reliable running stability and low speed fluctuation
  • Further more: light weight, low noise, long lifetime, high precision, long life, high torque, high reduction ratio, and diversed application range.
